Where does the
rod end work?

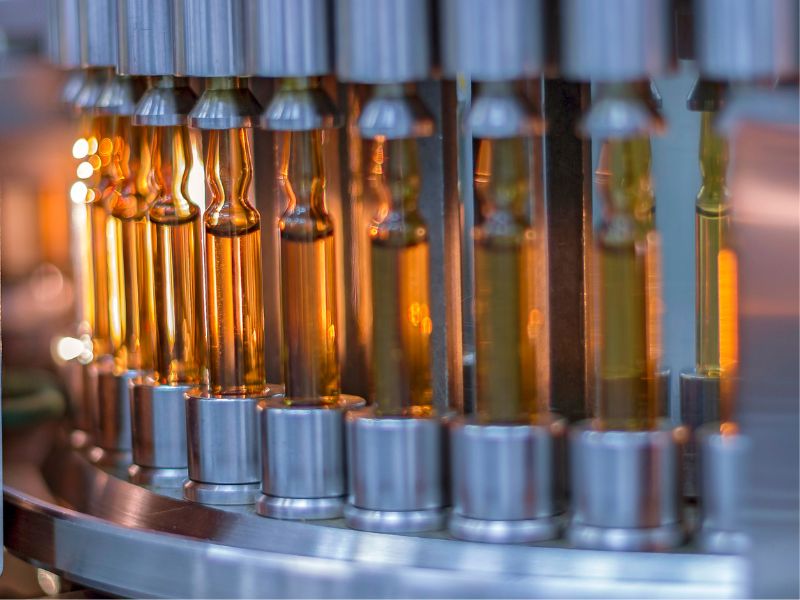

A filling line runs the same joint family through very different chemical and cycle conditions depending on how close it sits to open product.
Nozzle lift linkage
Grease near open product is a contamination risk, so the joint runs dry on a PTFE liner here.
Pistons and valves
Thousands of cycles per shift demand close to zero lash. The liner holds it with no routine upkeep.
Dosing mechanism
The joint keeps the piston rod aligned during repeated strokes, cutting side load and seal wear.
Adjustable guides
Rod ends let guide assemblies reposition for different container sizes and still move freely in operation.
Choose the contact
system first.
Do not select a joint from the word “stainless” alone. The race or liner changes maintenance and wear behavior.
PTFE-lined (product zone)
Runs dry inside the product zone, avoiding the contamination risk of grease near open product. Confirm the liner’s chemical and temperature rating against your actual CIP cycle.
Example: JMX / JFX familyMetal-to-metal / greasable (enclosed housings)
A greasable construction can be appropriate inside an enclosed drive housing, away from open product — confirm the actual part has a grease fitting before specifying it that way.
Confirm the enclosure, not just the location304 or 316L
316L housing is the better choice where washdown water carries chlorides. Confirm your liner material is rated for your actual CIP temperature and chemistry.
Grade and liner follow the CIP chemistryCIP chemistry, cycle count, and proximity to product each narrow down the right construction.
Corrosion, contamination, misalignment, and load each need their own check.
| Condition | What to review before specifying |
|---|---|
| Grease contamination risk near open product | A joint inside the product zone should run dry rather than greasable — confirm which joints on your line actually sit near open product versus inside an enclosed housing. |
| Hot CIP caustic/acid cycles | Confirm your actual CIP temperature and chemical concentration, then match the liner material to it — don’t assume a generic PTFE liner is rated for your specific cycle without checking. |
| Chloride exposure from washdown water | 316L housing holds up better than 304 where washdown water carries chlorides. Tell us your water chemistry and we’ll confirm the grade. |
| High-cycle dosing wear | Thousands of cycles per shift on the dosing piston need a liner rated for that duty — ask about the expected service interval for your actual cycle rate. |
| Guide repositioning for different container sizes | An adjustable guide assembly needs a joint that can reposition smoothly and repeatedly — check that the joint’s construction suits frequent repositioning, not just a fixed pivot. |
Tell us where
the joint lives.
The most useful enquiry contains the real geometry and environment around the joint, not only a nominal bore size.
- ApplicationNozzle lifting system, piston or dosing mechanism, valve actuation linkage, adjustable guide assembly, or other
- MotionOscillation angle, cycle frequency, speed, and stop-to-stop travel
- LoadPeak radial load, axial component, vibration, and shock
- EnvironmentHeat, dust, washdown chemistry, salt spray, or submersion exposure
- InterfaceBore, pin diameter, body width, bracket width, spacer, and mounting height
- ThreadMale or female, metric or inch, right- or left-hand, engagement length
- MaterialHousing, ball, race/liner, fastener, and adjacent bracket materials
- DocumentsDrawing, sample, original part number, quantity, and required finish
Proximity to product decides the lubrication, not the load.
A joint a few inches from open product needs a different service method than one inside a sealed drive housing, even at the same load. Specify by zone, not just by force.
Before you
place the order.
Use these questions to turn an application description into an engineering review.
Can a joint near open product be greasable?
We’d avoid it. A PTFE-lined joint that runs dry is the standard choice inside the product zone, since grease near open product is a contamination risk. Greasable constructions are better kept inside enclosed drive housings.
What CIP temperature and chemistry can the liner handle?
Tell us your actual CIP temperature and chemical concentration and we’ll confirm the liner material rated for it — we don’t publish a single blanket temperature rating across every liner option.
Is food-contact certification available for the liner?
We can describe our joints using standard food-grade material terminology, but tell us if you need a specific certification confirmed for your liner material before we quote it that way.
What should I send for a filling machine joint?
Tell us your CIP temperature and chemistry, plus the nozzle or piston geometry. We’ll match the liner grade and ball material to your line.
