Heim Joints That Take the Heat, Vibration and Salt of an Exhaust Bypass Valve
Profab Machine supplies the stainless heim joints that connect exhaust bypass valve actuators to their butterfly plates on modified cars. These joints carry every valve movement through heat soak, vibration and winter road salt.
How a Bypass Valve Linkage Moves

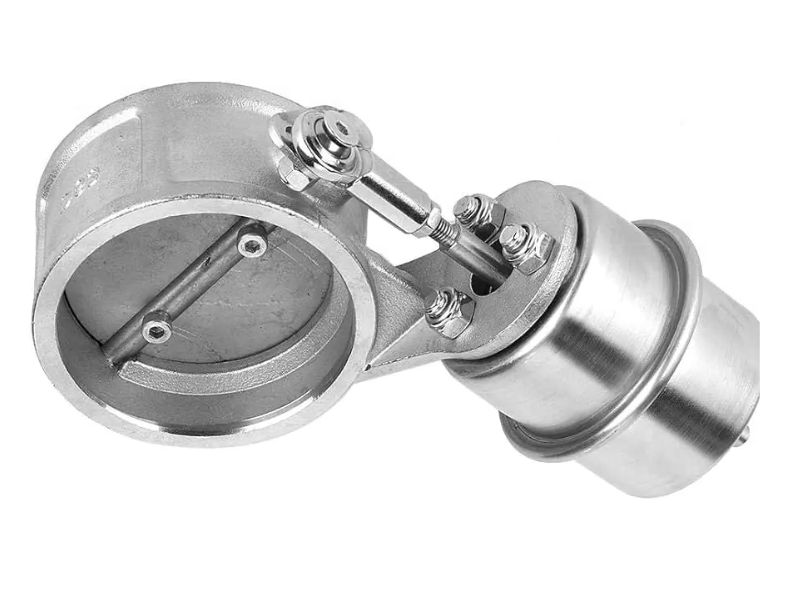

An exhaust bypass valve is a butterfly plate inside the exhaust pipe. An electric motor or vacuum actuator turns the plate through a short linkage, and the plate opens or closes a straight bypass path. Closed, the exhaust runs through the muffler and the car stays quiet. Open, the gas dumps straight through. The driver toggles between sound and backpressure from the cabin, and that switch happens at the linkage. As the exhaust heats up, the pipe grows and the valve shaft shifts. The spherical joints absorb that movement, so the butterfly seats clean instead of binding.
Rod ends on the valve side — The joint sits on a bracket welded to the exhaust pipe. Where heat soak pushes localized temperatures past 250°C, standard PTFE liners begin to degrade. For these high-temperature exhaust zones, we fit unlined metal-to-metal joints engineered to handle extreme thermal expansion without binding.
Rod ends on the actuator side — this end runs cooler. A PTFE lined joint holds zero lash, so every step of the actuator reaches the plate.
Adjustable Linkages, Jam Nuts and High Misalignment Joints
- Adjustable linkage — our adjuster carries opposing left and right hand threads. You set valve preload and opening timing by turning the body.
- Mounting hardware — jam nuts with thread class matched to the rod end hold the setting on a vibrating exhaust. High misalignment joints cover arms that sweep past the standard angle.
Which Stainless Grade Survives Exhaust Heat
- Lubrication options — greasable metal to metal joints, or dry PTFE liner joints that never need service.
- Corrosion resistance — 304 housing as standard. 316L for coastal winter cars. 17-4PH H900 reaches about 1310 MPa tensile for motorsport builds.
- Stainless throughout — housing, ball and shank all in stainless. No plating to flake off in road spray.
Rod Ends Machined to Your Valve Shaft
Every bypass valve linkage starts with a drawing or a sample. We size the joints from your valve shaft and actuator arm, machine to your thread spec, and ship with material certs. Every case starts with a real mechanical challenge. Talk to Profab Machine to begin your project.
Common type
Rod ends for exhaust bypass valves: CM / CF series for the valve side, JMX / JFX series for the actuator side, XM / XF series for motorsport builds. M61.0 to M81.25 are the usual start.
Application
Modified cars: exhaust bypass valve linkages, valvetronic exhaust actuators, cutout valve control arms, etc.
