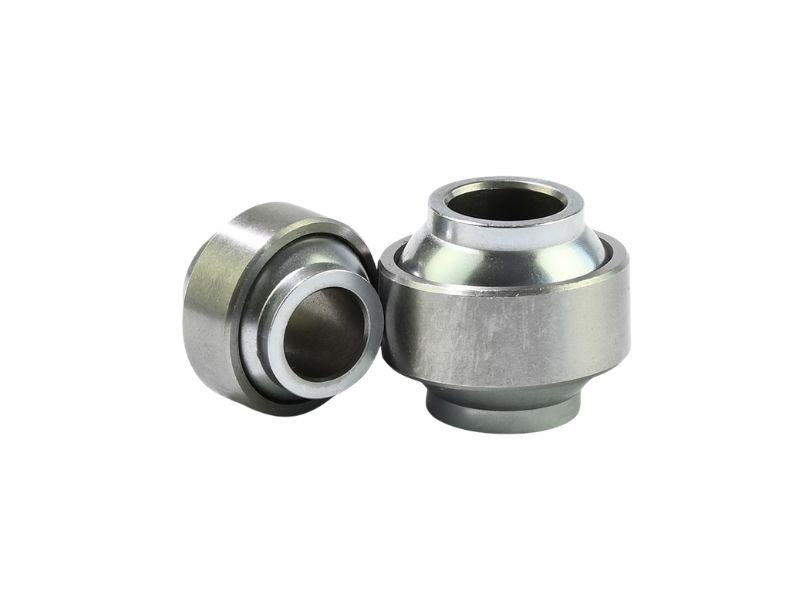

YPB Series Stainless Steel Spherical Bearing
YPB spherical bearings are built for linkage points that need more angular movement than a standard spherical bearing provides. The PTFE-lined stainless steel race works with a precision-ground stainless steel ball for low-friction articulation without routine greasing. The documented YPB-T range covers 0.250 to 0.750 inch bores with reference misalignment angles from 18 to 24 degrees.
Applications: Use YPB in high-angle agricultural pivots, fabricated machinery joints, industrial linkages, and articulated suspension components. Measure the complete motion envelope at full travel, then match the selected bore, load rating, and misalignment angle to your actual assembly geometry.
- High Misalignment
- 18 to 24 Degree Range
- PTFE Liner
- Inch Sizes
Specifications
All Dimensions In Inch
| YPB-T HIGH MISALIGNMENT PART NUMBER | B DIA. +.0000 -.0005 | D DIA. +.0000 -.0005 | W WIDTH +.000 -.005 | T WIDTH +.005 -.005 | O FLAT DIA. REF. | M CHAMFER REF. | BALL DIA. REF. | a° MIS. ANGLE REF. | STATIC RADIAL LOAD (LBS) | APPROX WEIGHT (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|
| YPB4T | 0.25 | 0.74 | 0.593 | 0.255 | 0.39 | 0.02 | 0.593 | 24 | 7,560 | 0 |
| YPB5T | 0.3125 | 0.906 | 0.813 | 0.345 | 0.512 | 0.03 | 0.781 | 23 | 16,975 | 0 |
| YPB6T | 0.375 | 0.906 | 0.813 | 0 | 0.512 | 0.03 | 0.781 | 23 | 16,975 | 0 |
| YPB7T | 0.4375 | 1 | 1 | 0 | 0.618 | 0.03 | 0.875 | 22 | 19,018 | 0 |
| YPB8T | 0.5 | 1 | 1 | 0 | 0.73 | 0.03 | 1 | 20 | 25,263 | 0 |
| YPB10T | 0.625 | 1 | 1 | 1 | 0.856 | 0.03 | 1.25 | 20 | 44,651 | 0 |
| YPB12T | 0.75 | 2 | 1 | 1 | 0.97 | 0.035 | 1.325 | 18 | 53,507 | 0 |
