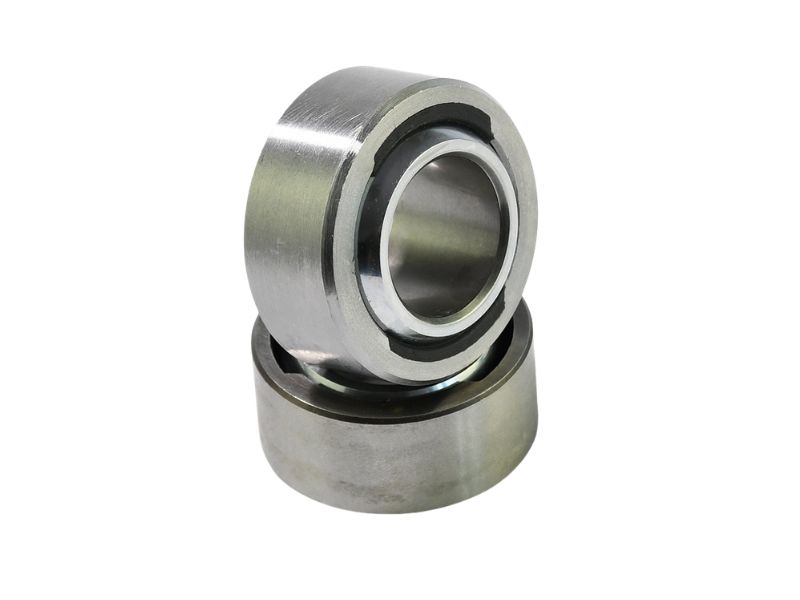

SLB spherical bearings use a load-slot body with a reinforced nylon race containing PTFE, which gives low-friction movement in compact linkage positions. The standard range covers 0.500 to 2.000 inch bores. Order a steel ball with an alloy-steel race, or ask for a stainless race and ball for corrosion-sensitive equipment.
Applications: Load-slot linkage points, fabricated machinery joints, agricultural pivots, and industrial articulated assemblies. Choose the stainless option for regular exposure, then confirm the corrosion and load needs of the whole assembly.


All dimensions are in inches. Static load ratings depend on the material, so send your load and application with the quote request.
| Part No. | B Bore | D Dia. | W Width | T Width | O Flat Dia. | M Chamfer | Ball Dia. | Angle (deg) | Weight (lb) |
|---|---|---|---|---|---|---|---|---|---|
| SLB8 | 0.5000 | 1.0000 | 0.500 | 0.390 | 0.640 | 0.032 | 0.781 | 9.5 | 0.060 |
| SLB10 | 0.6250 | 1.1875 | 0.625 | 0.500 | 0.780 | 0.032 | 0.968 | 8.5 | 0.100 |
| SLB12 | 0.7500 | 1.4375 | 0.750 | 0.593 | 0.920 | 0.044 | 1.187 | 9.0 | 0.190 |
| SLB14 | 0.8750 | 1.5625 | 0.875 | 0.703 | 0.980 | 0.044 | 1.312 | 9.5 | 0.263 |
| SLB16 | 1.0000 | 1.7500 | 1.000 | 0.797 | 1.118 | 0.044 | 1.500 | 10.0 | 0.386 |
| SLB16H | 1.0000 | 2.0000 | 1.000 | 0.781 | 1.360 | 0.032 | 1.687 | 9.0 | 0.553 |
| SLB20H | 1.2500 | 2.3750 | 1.187 | 0.937 | 1.610 | 0.032 | 2.000 | 8.5 | 0.895 |
| SLB24H | 1.5000 | 2.7500 | 1.375 | 1.094 | 1.860 | 0.032 | 2.312 | 8.5 | 1.358 |
| SLB32H | 2.0000 | 3.5000 | 1.750 | 1.375 | 2.360 | 0.044 | 2.937 | 8.5 | 2.650 |
We CNC machine your bearing parts ourselves, so you deal directly with the factory. Tiered pricing is available on larger orders.
We specialize in small-batch orders and custom bores, widths, and materials, so the bearing fits your assembly without secondary machining.
Parts are inspected against your drawing, and an ISO 9001 certified quality system sits behind every order.
























The ball is loaded into the race through a slot in the body. The reinforced nylon race with PTFE gives low-friction movement without routine greasing.
Add -SS for a stainless race and ball, as in SLB12-SS, or add -S for a stainless race with a steel ball, as in SLB12-S.
The standard table covers 0.500 to 2.000 inch bores. Other sizes can be quoted from your drawing.
Yes. Send the bore, outside diameter, width, and material on your drawing and we quote it. Custom finishing can be quoted the same way.
If you already have drawings, email them to [email protected].
