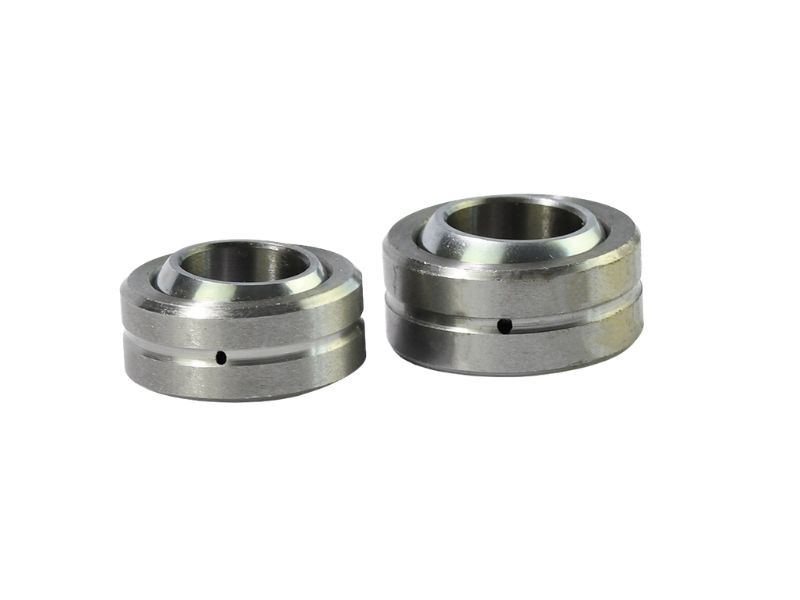

COM Series Stainless Steel Spherical Bearing
COM spherical bearings use a metal-to-metal contact design with a precision-ground, heat-treated 52100 bearing-steel ball and an oil-coated alloy-steel race. The COM series includes a lubrication groove and hole for service access. Inch bore sizes cover compact linkage points through heavy-duty pivot locations. You can specify an optional zinc-plated race or select the COM-T PTFE-lined variant when routine lubrication is difficult.
Applications: Use COM bearings in suspension and chassis pivots, articulated agricultural equipment, industrial mechanisms, and fabricated machinery joints. They suit radial load support where you can provide a defined lubrication and inspection schedule.
- Metal to Metal
- Lubrication Groove Hole
- Heat-Treated Ball
- Inch Sizes
Specifications
| INCH PART NO. | B DIA. +.0015 -.0005 | D DIA. +.0000 -.0005 | W WIDTH +.005 -.005 | T WIDTH +.005 -.005 | O FLAT DIA. REF. | M CHAMFER REF. | BALL DIA. REF. | a° MIS. ANGLE REF. | STATIC RADIAL LOAD (LBS) | APPROX WEIGHT (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|
| COM2(T) | 0.165 | 0.4687 | 0.25 | 0.187 | 0.235 | 0.02 | 0.343 | 9 | 3,200 | 0 |
| COM3(T) | 0.19 | 0.5625 | 0.281 | 0.218 | 0.293 | 0.015 | 0.406 | 11 | 3,250 | 0 |
| COM4(T) | 0.25 | 0.6562 | 0.343 | 0 | 0.364 | 0.022 | 0.5 | 13.5 | 4,950 | 0 |
| COM5(T) | 0.3125 | 1 | 0 | 0 | 0.419 | 0.032 | 0.562 | 12 | 6,475 | 0 |
| COM6(T) | 0.375 | 1 | 0 | 0 | 0.516 | 0.032 | 0.656 | 10 | 8,400 | 0 |
| COM7(T) | 0.4375 | 1 | 0 | 0 | 0.53 | 0.032 | 0.687 | 8 | 9,453 | 0 |
| COM8(T) | 0.5 | 1 | 1 | 0 | 0.64 | 0.032 | 0.781 | 9.5 | 13,250 | 0 |
| COM9(T) | 0.5625 | 1 | 1 | 0 | 0.71 | 0.032 | 0.875 | 9.5 | 16,630 | 0 |
| COM10(T) | 0.625 | 1 | 1 | 1 | 0.78 | 0.032 | 0.968 | 8.5 | 21,280 | 0 |
| COM12(T) | 0.75 | 1 | 1 | 1 | 0.92 | 0.044 | 1.187 | 9 | 31,920 | 0 |
| COM14(T) | 0.875 | 2 | 1 | 1 | 0.98 | 0.044 | 1.312 | 9.5 | 41,960 | 0 |
| COM16(T) | 1 | 2 | 1 | 1 | 1.118 | 0.044 | 1.5 | 10 | 55,200 | 0 |
| HCOM16(T) | 1 | 2 | 1 | 0.781 | 1.36 | 0.032 | 1.687 | 9 | 70,820 | 1 |
| HCOM19(T) | 1.1875 | 2.375 | 1.187 | 0.937 | 1.61 | 0.032 | 2 | 8.5 | 100,730 | 1 |
| HCOM20(T) | 1.25 | 2.375 | 1.187 | 0.937 | 1.61 | 0.032 | 2 | 8.5 | 100,730 | 1 |
| HCOM24(T) | 1.5 | 2.75 | 1.375 | 1.094 | 1.86 | 0.032 | 2.312 | 8.5 | 135,950 | 1 |
| HCOM28(T) | 1.75 | 3.125 | 1.562 | 1.25 | 2.11 | 0.044 | 2.625 | 8 | 176,370 | 2 |
| HCOM32(T) | 2 | 3.5 | 1.75 | 1.375 | 2.36 | 0.044 | 2.937 | 8.5 | 217,060 | 3 |
| METRIC PART NO. | B DIA. +.065 -.013 | D DIA. +.000 -.018 | W WIDTH +.13 -.13 | T WIDTH +.13 -.13 | O FLAT DIA. REF. | M CHAMFER REF. | BALL DIA. REF. | a° MIS. ANGLE REF. | STATIC RADIAL LOAD (LBS) | APPROX WEIGHT (GRAMS) |
|---|---|---|---|---|---|---|---|---|---|---|
| COMA-M3(T) | 3 | 12 | 6 | 4.5 | 5.19 | 0.5 | 7.93 | 13.5 | – | – |
| COMA-M5(T) | 5 | 16 | 8 | 6 | 7.68 | 0.5 | 11.1 | 12.5 | 27,555 | 9 |
| COMA-M6(T) | 6 | 18 | 9 | 7 | 8.93 | 0.5 | 12.7 | 12.5 | 35,459 | 13 |
| COMA-M8(T) | 8 | 22 | 12 | 9 | 10.35 | 0.8 | 15.88 | 14 | 59,121 | 24 |
| COMA-M10(T) | 10 | 26 | 14 | 11 | 12.88 | 0.8 | 19.05 | 13.5 | 82,744 | 40 |
| COMA-M12(T) | 12 | 30 | 16 | 12 | 15.39 | 0.8 | 22.23 | 13 | 112,829 | 80 |
| COMA-M14(T) | 14 | 34 | 19 | 14 | 16.86 | 1 | 25.4 | 16 | 141,845 | 110 |
| COMA-M16(T) | 16 | 38 | 21 | 15 | 19.34 | 1 | 28.58 | 15 | 177,343 | 130 |
| COMA-M18(T) | 18 | 42 | 23 | 17 | 21.89 | 1 | 31.75 | 15 | 216,714 | 170 |
| COMA-M20(T) | 20 | 46 | 25 | 18 | 24.35 | 1 | 34.93 | 14.5 | 260,086 | 230 |
| COMA-M22(T) | 22 | 50 | 28 | 20 | 25.84 | 1.5 | 38.1 | 15 | 315,216 | 280 |
| COMA-M25(T) | 25 | 56 | 31 | 22 | 29.6 | 1.5 | 42.86 | 15 | 390,056 | 390 |
| COMA-M30(T) | 30 | 66 | 37 | 25 | 34.81 | 1.5 | 50.8 | 17 | 525,360 | 610 |
