JMX/JFX Series Stainless Steel Rod End

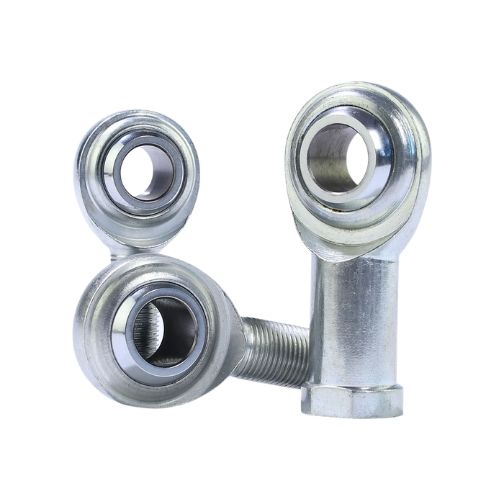

JMX and JFX rod ends feature a 3-piece heavy-duty construction with a self-lubricating PTFE liner bonded between the 440C ball and 304 housing. The liner runs completely dry, delivering zero-maintenance, smooth articulation without greasing schedules. Housings in 304 standard, with 316 and 17-4PH options.
Applications:
Designed for high-load, high-cycle industrial linkages requiring maintenance-free operation and low friction. Suitable for packaging machinery, automated motion controls, and dry industrial linkages where grease contamination cannot be tolerated.
- Three-Piece Construction
- Self-Lubricating PTFE Liner
- High Static Load Capacity
- 304 Standard, 316 / 17-4PH Options
Specifications
| MALE ROD END RIGHT HAND PART NO. | MALE ROD END LEFT HAND PART NO. | B DIA. +.0025 -.0005 | D DIA. +.010 -.010 | W WIDTH +.005 -.005 | T WIDTH +.005 -.005 | AM LENGTH +.015 -.015 | N THREAD UNF 3A | CM LENGTH +.062 -.031 | a° MIS. ANGLE REF. | STATIC RADIAL LOAD (LBS) | APPROX WEIGHT (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| JMXR3(T) | JMXL3(T) | 0.19 | 0.625 | 0.312 | 0.25 | 1.25 | 10-32 | 0.75 | 13 | 2,851 | 0 |
| JMXR3-4(T) | JMXL3-4(T) | 0.19 | 0.75 | 0.312 | 0.25 | 1.562 | 1/4-28 | 1 | 10 | 5,260 | 0 |
| JMXR4(T) | JMXL4(T) | 0.25 | 0.75 | 0 | 0.281 | 1.562 | 1/4-28 | 1 | 16 | 5,260 | 0 |
| JMXR4-5(T) | JMXL4-5(T) | 0 | 1 | 0 | 0.281 | 1.875 | 5/16-24 | 1.25 | 13 | 8,452 | 0 |
| JMXR5(T) | JMXL5(T) | 0 | 1 | 0 | 0.344 | 1.875 | 5/16-24 | 1.25 | 14 | 7,639 | 0 |
| JMXR5-6(T) | JMXL5-6(T) | 0 | 1 | 0 | 0.344 | 1.938 | 3/8-24 | 1.25 | 12 | 12,978 | 0 |
| JMXR6(T) | JMXL6(T) | 0 | 1 | 1 | 0.406 | 1.938 | 3/8-24 | 1.25 | 12 | 9,544 | 0 |
| JMXR6-7(T) | JMXL6-7(T) | 0 | 1 | 1 | 0.406 | 2.125 | 7/16-20 | 1.375 | 10 | 17,508 | 0 |
| JMXR7(T) | JMXL7(T) | 0 | 1 | 1 | 0.437 | 2.125 | 7/16-20 | 1.375 | 14 | 10,285 | 0 |
| JMXR7-8(T) | JMXL7-8(T) | 0 | 1 | 1 | 0.437 | 2.438 | 1/2-20 | 1.5 | 12 | 23,452 | 0 |
| JMXR8(T) | JMXL8(T) | 1 | 1 | 1 | 0.5 | 2.438 | 1/2-20 | 1.5 | 12 | 16,238 | 0 |
| JMXR8H(T) | JMXL8H(T) | 1 | 2 | 1 | 0.5 | 2.625 | 1/2-20 | 1.625 | 12 | 31,390 | 0 |
| JMXR8-10(T) | JMXL8-10(T) | 0.5 | 1.5 | 0.625 | 0.5 | 2.625 | 5/8-18 | 1.625 | 10 | 31,390 | 0 |
| JMXR10(T) | JMXL10(T) | 0.625 | 1.5 | 0.75 | 0.562 | 2.625 | 5/8-18 | 1.625 | 16 | 17,995 | 0 |
| JMXR10H(T) | JMXL10H(T) | 0.625 | 1.75 | 0.75 | 0.562 | 2.875 | 5/8-18 | 1.75 | 16 | 40,572 | 1 |
| JMXR10-12(T) | JMXL10-12(T) | 0.625 | 1.75 | 0.75 | 0.562 | 2.875 | 3/4-16 | 1.75 | 13 | 40,572 | 1 |
| JMXR12(T) | JMXL12(T) | 0.75 | 1.75 | 0.875 | 0.687 | 2.875 | 3/4-16 | 1.75 | 14 | 28,081 | 1 |
| JMXR12H(T) | JMXL12H(T) | 0.75 | 2 | 0.875 | 0.687 | 3.375 | 3/4-16 | 1.875 | 12 | 55,692 | 1 |
| JMXR12-14(T) | JMXL12-14(T) | 0.75 | 2 | 0.875 | 0.687 | 3.375 | 7/8-14 | 1.875 | 12 | 55,692 | 1 |
| JMXR14(T) | JMXL14(T) | 0.875 | 2 | 0.875 | 0.765 | 3.375 | 7/8-14 | 2 | 7 | 45,051 | 1 |
| JMXR16(T) | JMXL16(T) | 1 | 2.75 | 1.375 | 1 | 4.125 | 1/4-12 | 2.125 | 17 | 76,200 | 2 |
| JMXR16-1(T) | JMXL16-1(T) | 1 | 2.75 | 1.375 | 1 | 4.125 | 1-14 | 2.125 | 17 | 76,200 | 2 |
| JMXR16-2(T) | JMXL16-2(T) | 1 | 2.75 | 1.375 | 1 | 4.125 | 1-12 | 2.125 | 17 | 76,200 | 2 |
| JMXR16H(T) | JMXL16H(T) | 1 | 2.95 | 1.375 | 1 | 4.5 | 1/4-12 | 2.5 | 17 | 107,182 | 3 |
| JMXR20(T) | JMXL20(T) | 1.25 | 2.95 | 1.375 | 1 | 4.5 | 1/4-12 | 2.5 | 11 | 107,182 | 3 |
| FEMALE ROD END | B | D | W | T | AF | N | CF | a° | STATIC | LBS | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| JFXR3(T) | JFXL3(T) | 0.19 | 0.625 | 0.312 | 0.25 | 1.062 | 10-32 | 0.562 | 13 | 3,327 | 0 |
| JFXR4(T) | JFXL4(T) | 0.25 | 0.75 | 0.375 | 0.281 | 1.312 | 1/4-28 | 0.75 | 16 | 6,190 | 0 |
| JFXR5(T) | JFXL5(T) | 0.3125 | 0.875 | 0 | 0.344 | 1.375 | 5/16-24 | 0.75 | 14 | 7,639 | 0 |
| JFXR6(T) | JFXL6(T) | 0 | 1 | 1 | 0.406 | 1.625 | 3/8-24 | 0.937 | 12 | 9,544 | 0 |
| JFXR7(T) | JFXL7(T) | 0 | 1 | 1 | 0.437 | 1.812 | 7/16-20 | 1.062 | 14 | 10,285 | 0 |
| JFXR8(T) | JFXL8(T) | 1 | 1 | 1 | 0.5 | 2.125 | 1/2-20 | 1.187 | 12 | 15,336 | 0 |
| JFXR10(T) | JFXL10(T) | 1 | 2 | 1 | 0.562 | 2.5 | 5/8-18 | 1.5 | 16 | 17,955 | 0 |
| JFXR12(T) | JFXL12(T) | 1 | 2 | 1 | 0.687 | 2.875 | 3/4-16 | 1.75 | 14 | 28,081 | 1 |
| JFXR14(T) | JFXL14(T) | 1 | 2 | 1 | 0.765 | 3.375 | 7/8-14 | 1.875 | 7 | 45,051 | 1 |
| JFXR16(T) | JFXL16(T) | 1 | 3 | 1 | 1 | 4.125 | 1 1/4-12 | 2.125 | 17 | 76,200 | 2 |
| JFXR16-1(T) | JFXL16-1(T) | 1 | 3 | 1 | 1 | 4.125 | 1-14 | 2.125 | 17 | 76,200 | 3 |
| JFXR16-2(T) | JFXL16-2(T) | 1 | 3 | 1 | 1 | 4.125 | 1-12 | 2.125 | 17 | 76,200 | 3 |
| JFXR20(T) | JFXL20(T) | 1.25 | 2.75 | 1.375 | 1 | 4.125 | 1 1/4-12 | 2.125 | 11 | 76,200 | 2 |
| JFXR24-1(T) JFXL24-1(T) | 1.5 | 3.5 | 1.312 | 1.125 | 5.375 | 1 1/2-12 | 2.625 | 6.5 | 138,800 | 7 | |
