Specifiers working on deep countertops, custom joinery, or commercial fit-outs often need 14″, 18″, or asymmetric arm lengths that simply don’t exist off the shelf. Profab manufactures to your dimensions from a drawing or dimension table — no tooling fees for standard profiles.
A shelf bracket is a load-bearing fitting, typically an L-profile or a concealed rod, that transfers a shelf's weight into a wall or cabinet structure through mounting screws or anchors. Most bracket failures come down to the wrong material for the environment: carbon steel rusts behind tile grout, and zinc-plated brackets bleed corrosion stains onto kitchen walls once the coating wears through. Stainless steel eliminates both failure paths. The chromium oxide passive layer on 304 and 316 grade resists rust in humid kitchens, bathrooms, and marine settings, and restores itself after surface scratches, holding a consistent brushed or mirror finish without repainting.
All types are CNC formed from 304 or 316 stainless steel and available in brushed or mirror-polished finish. Custom dimensions are available on all types with no tooling fee for standard profiles.

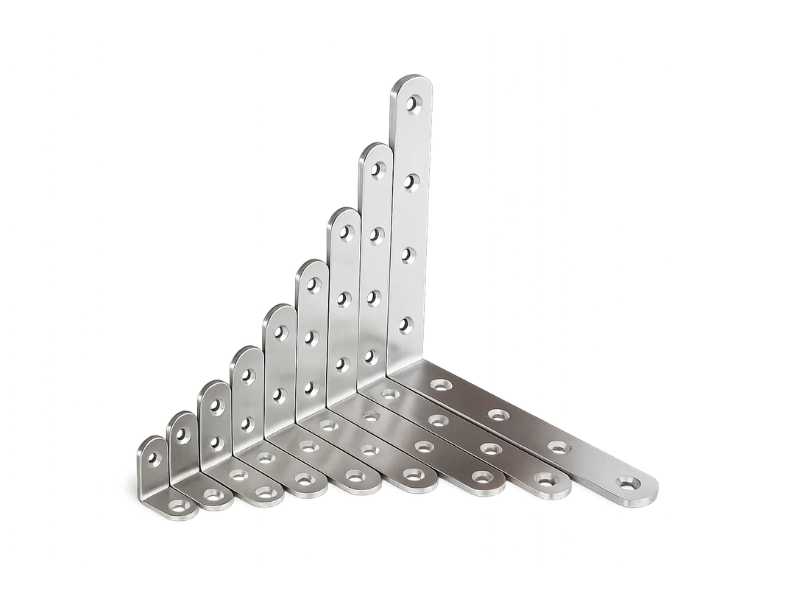

The workhorse of heavy-duty stainless steel shelf brackets. Symmetrical L-profile with two mounting flanges — one to the wall, one beneath the shelf. Sizes from 4″ to 24″ arm length. Handles granite countertops, timber work surfaces, and commercial shelving.
Stainless steel floating shelf brackets use blind steel rods anchored into the wall and concealed inside the shelf, leaving no visible hardware. The clean face suits modern kitchens, bathrooms, and retail display. 316 grade recommended for humid rooms. Rod diameter 10 mm or 12 mm, depth 150–300 mm.

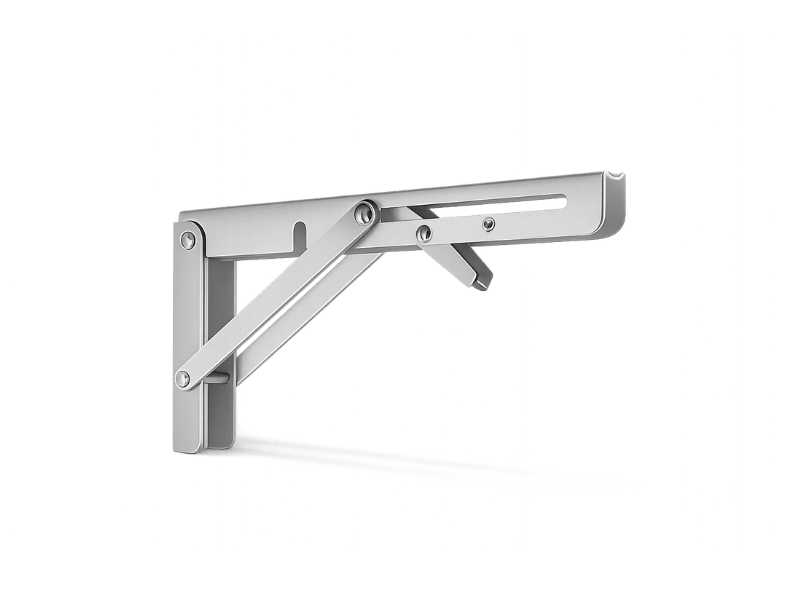

Stainless steel folding shelf brackets fold flat against the wall when not in use. It’s critical for workshop benches, laundry drop-down shelves, and hospitality spaces where clear floor area is needed intermittently. The pivot mechanism is fully brushed stainless steel, no plastic or zinc components to corrode or discolour.
Stainless steel adjustable shelf brackets clip into a wall-mounted slotted rail at 25 mm or 32 mm increments, letting you reposition shelves without drilling new holes. Used in retail shelving, commercial kitchens, laboratory storage, and residential pantry fit-outs where shelf heights change with use patterns.

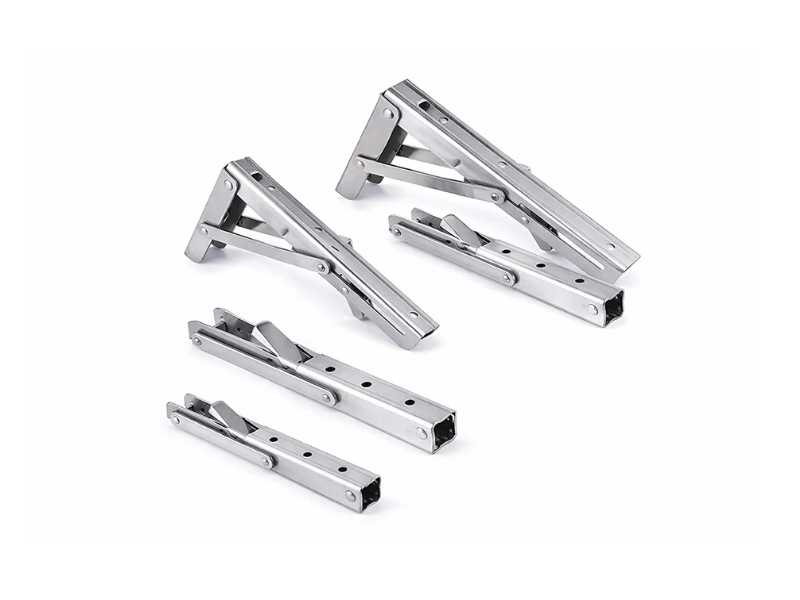

The same structural bracket with a premium #4 brushed satin finish, sold specifically to architects, interior designers, and premium hardware brands. Brushed stainless steel shelf brackets hide fingerprints better than mirror polish, coordinate with brushed SS appliances and tapware, and age to a consistent satin tone without requiring maintenance.

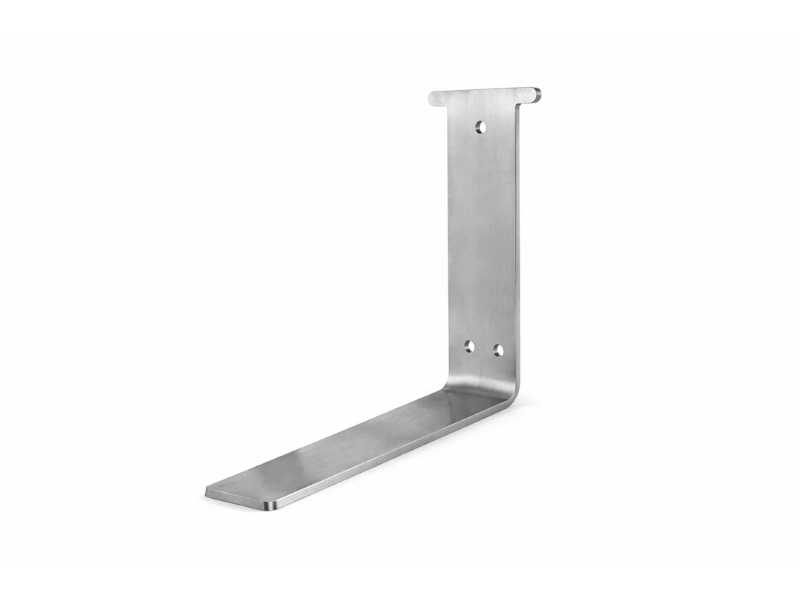

When a standard profile doesn’t fit your project, Profab can manufacture to your exact drawing. We accept STEP, DXF, and PDF. No tooling fee for laser-cut and press-formed profiles. Arm length beyond the standard 4″–24″ range, mounting pattern matched to your studs or assembly, and brushed, mirror, or etched finish are all available on request.
Standard grade for indoor machinery, automation, and dry or mildly humid environments. Good resistance to cleaning chemicals. Cost-effective for high-volume orders. Not suitable for continuous salt spray or chloride-heavy process environments.
Food · Automation · IndoorMarine and food-grade standard. 2–3% molybdenum addition raises chloride pitting resistance significantly above 304. Required for outdoor, marine, offshore, and food equipment with CIP chemical cleaning. Especially 316 stainless steel has excellent resistance to corrosive saltwater effects.

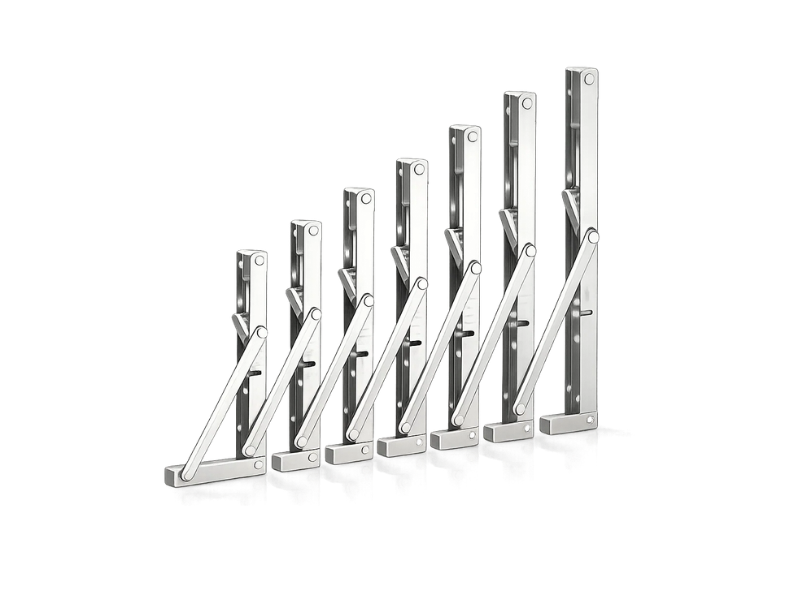

Marine · Chemical · Pumps316 stainless steel shelf supports maintain structural integrity and surface finish in environments where other materials require periodic replacement or refinishing.
316 grade withstands daily acid and bleach-based washdowns without corroding. Flat, crevice-free mounting passes hygiene inspection.

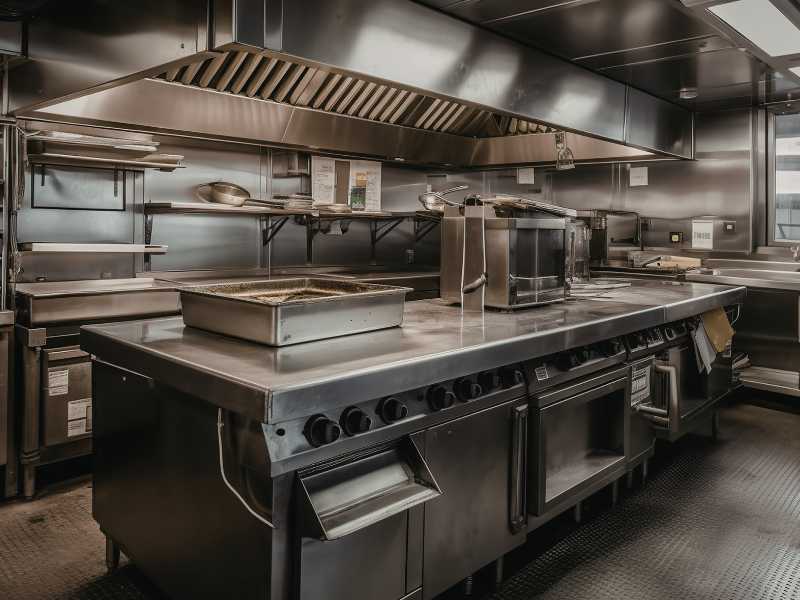

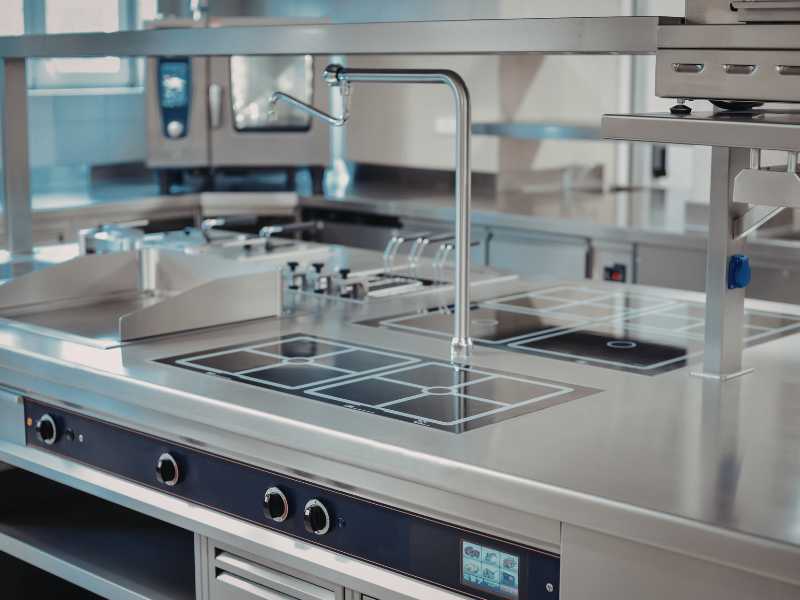

Brushed finish coordinates with stainless appliances and cabinet hardware. It never needs repainting through years of steam, grease, and cleaning spray.
316L resists saltwater spray, UV exposure, and temperature cycling in boat galleys, dock lockers, and coastal building interiors.
Electropolished 316 withstands solvent cleaning and autoclave-adjacent humidity. The smoother surface reduces microstructure where bacteria can shelter compared to a standard mill finish.

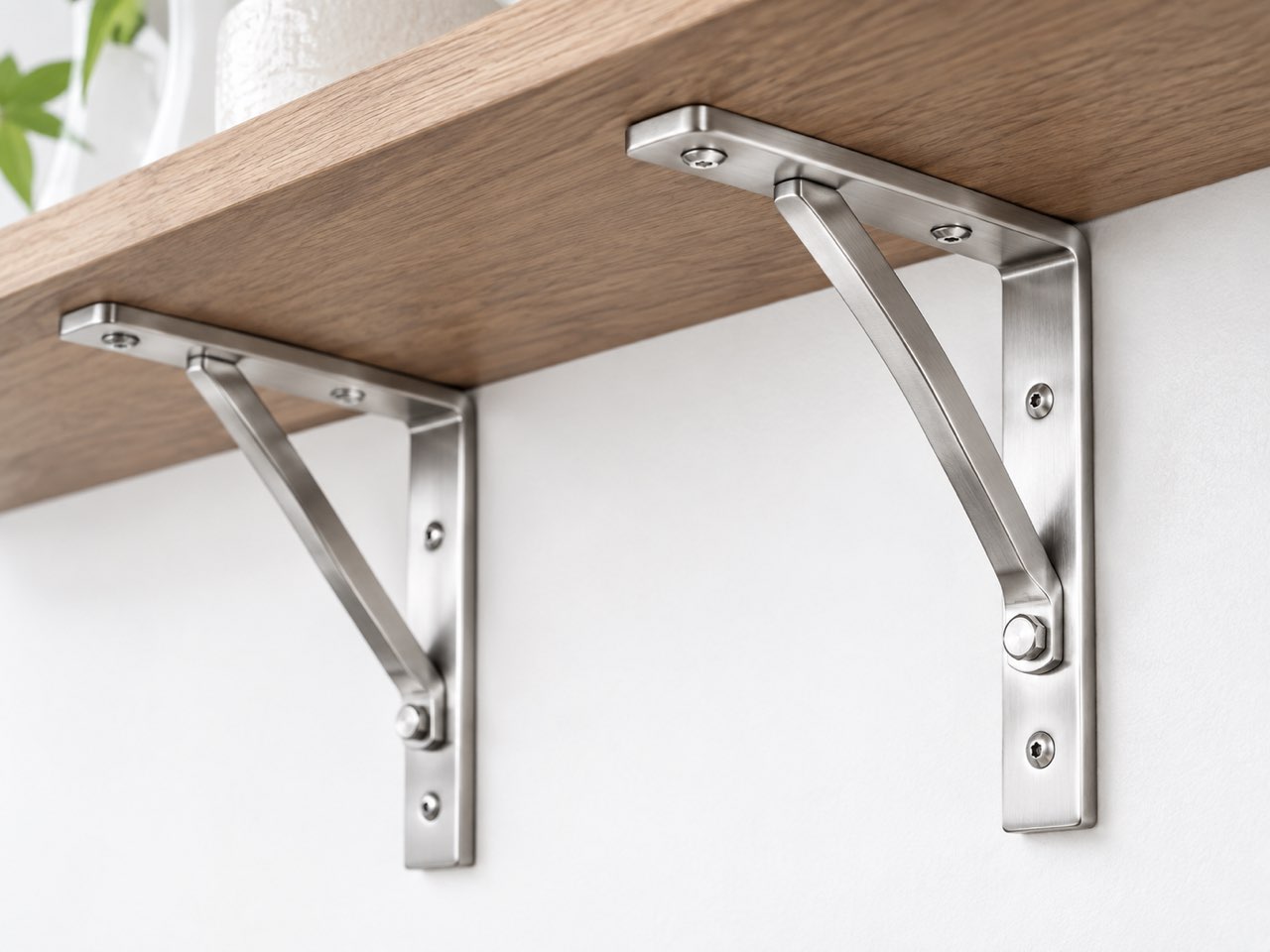

An undersized bracket doesn't fail gradually. It fails at the weld or the mounting hole once the load exceeds the arm's rated capacity. Matching arm length and material thickness to the actual shelf depth and load, not just the visible span, is what keeps a granite countertop or a fully stocked pantry shelf secured after years of use.

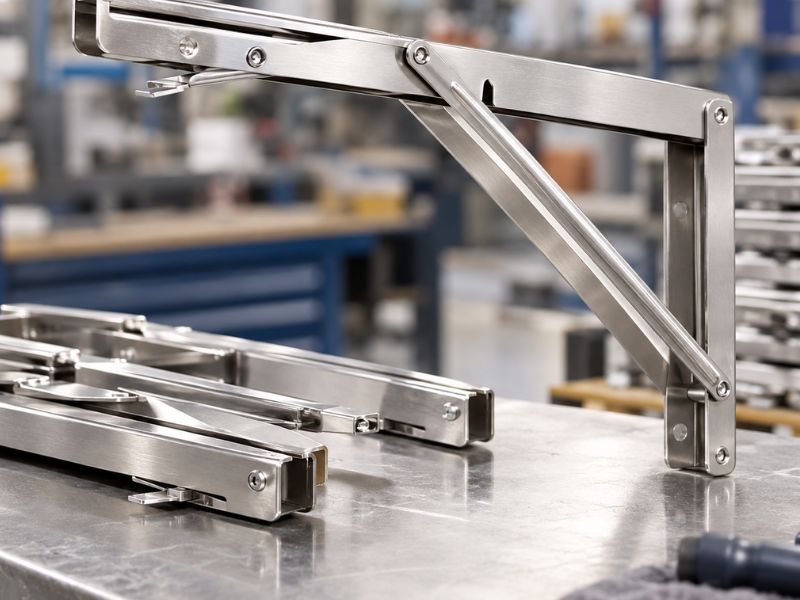

A bracket bent on a manual press can vary bend angle by a degree or more between pieces, which shows up as an uneven shelf line across multiple brackets. Profab forms each bracket on CNC equipment from solid stainless sheet stock, so the bend angle and hole position repeat consistently across a full order. That consistency matters most to OEM buyers speccing brackets in volume for a standardized product line.
Every bracket in an order is formed on the same CNC setup, so arm length, bend angle, and mounting hole spacing stay identical across the full batch. No field-fitting a mismatched bracket into an otherwise even shelf line.
Send a drawing or dimension table and Profab's team reviews arm length, mounting pattern, and load requirement before quoting, catching a spec issue before it becomes a returned sample instead of after.
Mounting holes ship pre-drilled and sized for standard M6/M8 anchors or 1/4″ bolts, so installers don't stop mid-job to redrill or source matching fasteners on site.
Arm length, mounting, and grade options by bracket type. Contact Profab with your shelf depth and load to confirm the right thickness for a custom order.
| Bracket Type | Arm Length / Depth | Mounting | Grades Available |
|---|---|---|---|
| Heavy Duty | 4″–24″ | Wall and shelf-flange, standard anchors | 304, 316/316L |
| Floating | 150–300 mm rod depth | Concealed rod, 10 mm or 12 mm diameter | 304, 316/316L (316 recommended for humid rooms) |
| Adjustable | 4″–24″ | Slotted rail, 25 mm or 32 mm increments | 304, 316/316L |
| Custom OEM | Beyond 4″–24″, to your drawing | Matched to your mounting points | 304, 316/316L |
| Parameter | What to Check | Selection Advice |
|---|---|---|
| Bracket Type | Shelf mobility, visible hardware, mounting surface | Heavy Duty for fixed shelving. Floating for a concealed-hardware look. Adjustable for shelves that need repositioning. Folding where floor space matters intermittently. |
| Material Grade | Environment: dry indoor vs. humid or marine | 304 for indoor, dry-to-mildly-humid use. 316/316L for kitchens, bathrooms, marine, and outdoor exposure. |
| Wall Anchor | Wall construction: stud, drywall, masonry | Pre-drilled holes fit standard M6/M8 anchors or 1/4″ bolts. Anchor into a stud or masonry for heavier loads. A drywall-only anchor limits capacity regardless of bracket size. |
| Arm Length | Actual shelf depth, not just the visible span | Match arm length to the full shelf depth. An undersized arm concentrates load at the mounting hole instead of spreading it across the bracket. |
| Surface Finish | Application and visibility | Brushed for kitchens and visible hardware. Mirror polish for decorative use. Electropolished for pharma, lab, and food environments. |
Not seeing your question? Email us at [email protected] and we typically reply same day.
Load capacity depends on bracket size, thickness, and wall anchor method, and it isn't the same across every profile. Contact us with your shelf depth and expected load and we'll recommend a bracket type and thickness, with a dimensional drawing for your order.
We supply brushed (#4 satin), mirror polished, electropolished, and passivated finishes. Brushed stainless steel shelf brackets are the most popular for kitchens and commercial interiors. They hide fingerprints better than mirror polish and coordinate with brushed SS appliances. Mirror polish is specified for decorative or hygienic applications. Electropolished finish is available for food, pharma, and cleanroom environments.
All brackets ship with pre-drilled mounting holes sized for standard M6/M8 anchors or 1/4″ bolts. No on-site modification needed. For folding and adjustable bracket systems, we supply a detailed installation drawing with each order.
