Checking a stainless steel weld starts with what you can see and works inward from there. Visual inspection catches surface problems first; ultrasonic and eddy current testing find the cracks and defects hiding beneath the surface. Together, these methods are what keep welded equipment safe and performing as designed.
Common methods include:
- Visual inspection
- Liquid penetrant testing
- Ultrasonic testing
- Eddy current testing

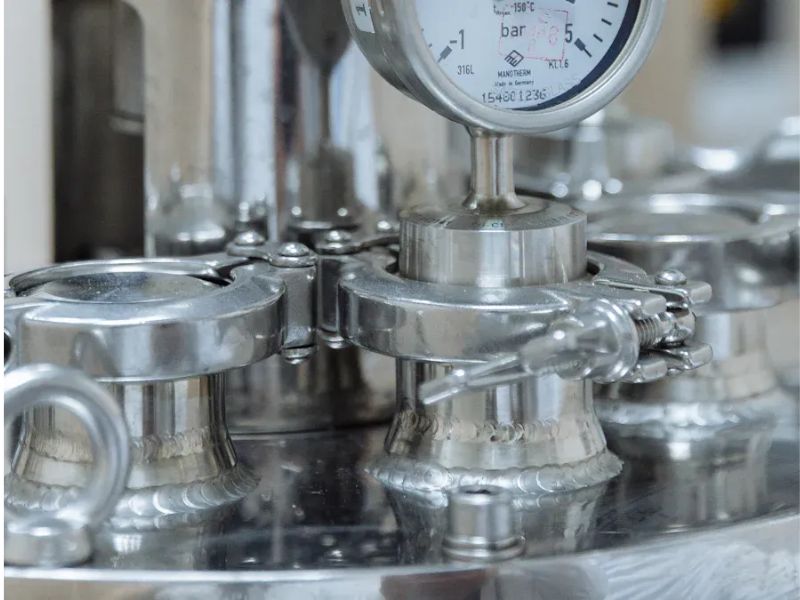

Testing Methods for Stainless Steel Welds
1. Visual Inspection
Visual inspection is the first step in checking any stainless steel weld. Many problems are visible on close inspection alone, no special tools required, though magnifiers or gauges help for detailed work. Lighting matters more than people expect: 500 lux for general checks, 1,000 lux for detailed inspection.
Before welding: check material quality and cleanliness, and confirm the joint fits properly with correct equipment settings.
During welding: watch the weld bead for cracks or poor penetration, and inspect each pass, especially the first, for undercut or trapped slag.
After welding: clean the weld surface for a clear view, and look for cracks, holes, or uneven areas.
Visual inspection catches cracks, porosity, undercut, and surface slag. Standards like AWS D1.6 and ISO 9606-1 require visual inspection by trained personnel specifically because it's the first line of defense against surface problems that weaken a weld, and it's a prerequisite before moving to more advanced testing.
2. Surface Testing
Surface testing catches defects that aren't immediately visible. The most common methods are dye penetrant testing (PT), magnetic particle inspection (MT), and eddy current testing.
Dye Penetrant Testing (PT): a colored or fluorescent liquid is applied to the weld and seeps into cracks or pores. After wiping off the excess and applying a developer, cracks show up as colored lines. PT works well on stainless steel and is straightforward to apply.
Magnetic Particle Testing (MT): a magnetic field and iron powder reveal cracks, with the powder gathering at defect sites. MT only works on ferromagnetic grades, which rules it out for most austenitic stainless steel.
Eddy Current Testing: electromagnetic probes detect surface and near-surface defects. Flexible probes scan welds of varying shapes and record data for later review, and the method works well on stainless steel specifically because most grades are non-magnetic.
Surface testing finds cracks, notches, and other surface-breaking defects on weld crowns, toes, and heat-affected zones.
3. Non-Destructive Testing
Non-destructive testing (NDT) checks inside a weld without damaging it, using several methods, each with its own strengths:
| NDT Method | What It Finds | Notes |
|---|---|---|
| Ultrasonic Testing | Internal cracks, voids, and inclusions | Good for thick welds; needs a skilled operator |
| Radiographic Testing | Porosity, inclusions, cracks, and voids | Produces a film record; needs access to both sides |
| Eddy Current Testing | Surface and near-surface cracks | Fast and records data automatically |
| Magnetic Particle | Surface cracks (ferromagnetic materials only) | Not applicable to most stainless steel welds |
| Penetrant Testing | Small surface cracks and pores | Requires a smooth, clean surface |
Ultrasonic testing uses sound waves to find flaws deep inside a weld, works well for thick sections, and gives fast results, though stainless steel's grain structure scatters sound more than carbon steel, making interpretation harder. Phased array ultrasonic testing (PAUT) and improved probe designs address much of that limitation. Radiographic testing uses X-rays or gamma rays to image hidden defects, showing size and shape clearly, but takes more time and costs more, and both methods require trained operators to interpret results correctly.
4. Destructive Testing
Destructive testing checks a weld's true mechanical properties by breaking or deforming a sample, used when you need actual numbers rather than a pass/fail inspection.
Tensile Testing: the weld is pulled until it breaks, showing how much force it withstands and how much it stretches before failure.
Bend Testing: the weld is bent over a set radius; cracking or breaking indicates insufficient strength or ductility.
Hardness Testing: a hard tip is pressed into the weld and the indentation depth measured, indicating toughness versus brittleness.
Macro Etch Testing: a cross-section of the weld is cut, polished, and etched with acid to reveal the internal structure, showing fusion quality and hidden flaws directly.
Destructive tests give concrete numbers for strength, ductility, and hardness, and they can surface weak spots that non-destructive methods miss entirely.
5. Chemical and Corrosion Tests
Stainless steel welds need to resist rust and corrosion, particularly in harsh service environments, and these tests verify that directly.
ASTM A923: detects harmful intermetallic phases in duplex stainless steels.
ASTM A262: tests for intergranular corrosion susceptibility, which occurs when chromium depletes at grain boundaries.
ASTM G48: measures resistance to pitting and crevice corrosion, especially relevant in salty or chloride-exposed environments.
ASTM G28: a boiling-acid immersion test that detects intergranular corrosion susceptibility in wrought, nickel-rich, chromium-bearing alloys.
Electrochemical tests like the critical pitting temperature (CPT) test find the lowest temperature at which pitting initiates, useful for comparing corrosion resistance across different welds. These tests matter most in food processing and chemical plants, where welds face aggressive cleaning chemicals or acids as routine exposure.
Interpreting Results and Weld Quality
Common Defects
Different defects have different causes and need different tests to catch reliably:
| Weld Defect | Description / Causes | Most Effective Testing Methods |
|---|---|---|
| Cracks (cold, hot, lamellar) | Hydrogen, thermal stress, low ductility, inclusions. Cold cracks form below 200°C; hot cracks form during solidification. | Ultrasonic, radiography, liquid penetrant (surface) |
| Inclusions | Oxides, slag, or tungsten trapped by poor shielding or electrode issues | Ultrasonic, magnetic particle, radiography |
| Porosity | Gas trapped by contamination or incorrect settings | Visual, ultrasonic, eddy current |
| Undercuts | High current, long arc, poor joint design | Radiography |
| Lack of Fusion | Insufficient heat or poor technique | Radiography, ultrasonic |
| Spatter | Arc welding issues, poor filler, or shielding gas problems | Visual |
Factors Affecting Quality
- Alloy composition (carbon, chromium, nickel content) changes weldability, strength, and corrosion resistance
- Some grades, particularly austenitic, retain heat more, raising the risk of distortion or localized corrosion at the weld
- Welding method controls heat input and cooling rate, both of which affect crack risk and corrosion resistance
- Preheating, interpass temperature control, and post-weld heat treatment matter for some alloy types
- Correct filler selection and welding parameters are what actually keep the weld strong and corrosion-resistant
- Austenitic, ferritic, and martensitic grades each need adjusted procedures, there's no single process that fits all stainless families
Conclusion
Reliable weld quality control combines non-destructive and destructive testing, not one or the other. Keep tools clean, control heat input, match filler metals to the base alloy, and follow ISO and ASTM standards throughout. A practical program includes: checking welds regularly to catch problems early, documenting every test result, using trained inspectors consistently, adopting tools like phased-array or digital radiography where they add real value, handling and storing materials carefully to avoid contamination, and monitoring the weld process itself rather than only checking the finished result.
Profab offers industry-leading precision welding technology, with every weld monitored on automated parameters and visually inspected by hand for structural safety and longevity at the source.
FAQ
What does a good stainless steel weld look like?
A good weld is smooth and even, with no visible cracks, holes, or sharp edges, and its color should closely match the base metal.
Can you test welds without special equipment?
Yes, for basic checks. Visual inspection with a magnifier catches many surface problems. Finding deeper, internal defects requires specialized equipment like ultrasonic or radiographic testing.
