YPB Series Stainless Steel Spherical Bearing
All Dimensions In Inch

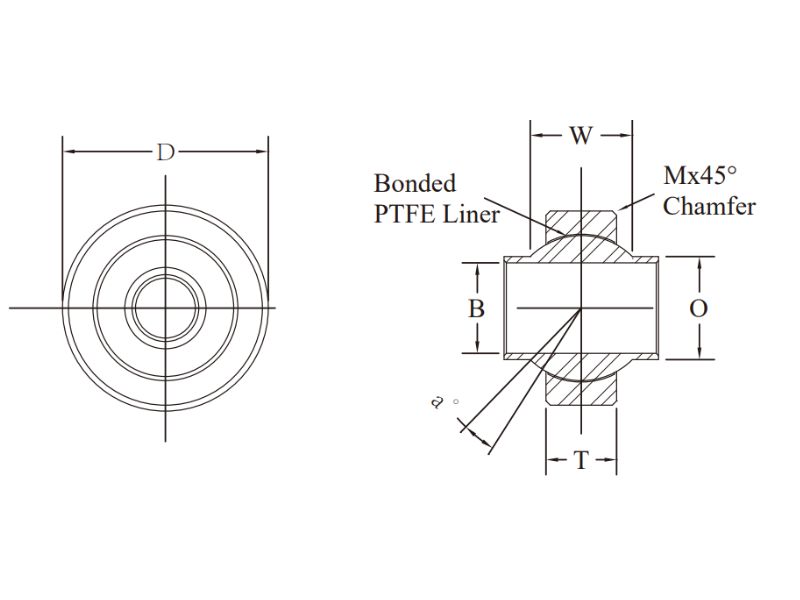

| YPB-T HIGH MISALIGNMENT PART NUMBER | B DIA. +.0000 -.0005 | D DIA. +.0000 -.0005 | W WIDTH +.000 -.005 | T WIDTH +.005 -.005 | O FLAT DIA. REF. | M CHAMFER REF. | BALL DIA. REF. | a° MIS. ANGLE REF. | STATIC RADIAL LOAD (LBS) | APPROX WEIGHT (LBS) |
| YPB4T | 0.25 | 0.74 | 0.593 | 0.255 | 0.39 | 0.02 | 0.593 | 24 | 7,560 | 0 |
| YPB5T | 0.3125 | 0.906 | 0.813 | 0.345 | 0.512 | 0.03 | 0.781 | 23 | 16,975 | 0 |
| YPB6T | 0.375 | 0.906 | 0.813 | 0.345 | 0.512 | 0.03 | 0.781 | 23 | 16,975 | 0 |
| YPB7T | 0.4375 | 1 | 0.875 | 0.345 | 0.618 | 0.03 | 0.875 | 22 | 19,018 | 0 |
| YPB8T | 0.5 | 1.125 | 0.937 | 0.401 | 0.73 | 0.03 | 1 | 20 | 25,263 | 0 |
| YPB10T | 0.625 | 1.375 | 1.2 | 0.567 | 0.856 | 0.03 | 1.25 | 20 | 44,651 | 0 |
| YPB12T | 0.75 | 1.5625 | 1.28 | 0.62 | 0.97 | 0.035 | 1.325 | 18 | 53,507 | 0 |
