SATK/SITK Serious Stainless Steel Rod End

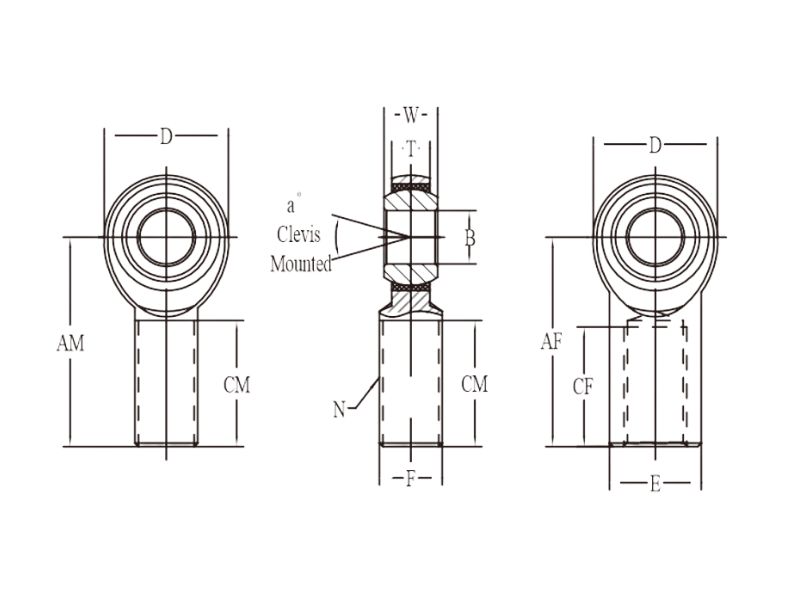

| MALE ROD END RIGHT LEFT HAND HAND PART NO. PART NO. | B DIA. +0.065 -0.012 | D DIA. +0.38 -0.38 | W WIDTH +0.12 -0.12 | T WIDTH +0.13 -0.13 | AM LENGTH +0.40 -0.40 | N THREAD METRIC MALE | CM LENGTH +1.00 -1.00 | a° MIS. ANGLE REF. | STATIC RADIAL LOAD KN | APPROX WEIGHT (GRAMS) | |
| SA5TK | SAL5TK | 5 | 18 | 8 | 6 | 33 | M5 X0.8 | 19 | 4 | 8 | 13 |
| SA6TK | SAL6TK | 6 | 20 | 9 | 6.75 | 36 | M6 X 1.0 | 22 | 9 | 9 | 20 |
| SA8TK | SAL8TK | 8 | 24 | 12 | 9 | 42 | M8 X 1.25 | 25 | 13 | 17 | 33 |
| SA10TK | SAL10TK | 10 | 28 | 14 | 10.5 | 48 | M10 X 1.5 | 29 | 13 | 23 | 56 |
| SA12TK | SAL12TK | 12 | 32 | 16 | 12 | 54 | M12 X 1.75 | 33 | 13 | 32 | 87 |
| SA14TK | SAL14TK | 14 | 36 | 19 | 13.5 | 60 | M14 X 2.0 | 38 | 13 | 42 | 129 |
| SA16TK | SAL16TK | 16 | 42 | 21 | 15 | 66 | M16 X 2.0 | 40 | 13 | 53 | 189 |
| SA18TK | SAL18TK | 18 | 46 | 23 | 16.5 | 72 | M18 X 1.5 | 44 | 13 | 64 | 267 |
| SA20TK | SAL20TK | 20 | 50 | 25 | 18 | 78 | M20 X 1.5 | 47 | 13 | 78 | 348 |
| SA22TK | SAL22TK | 22 | 54 | 28 | 20 | 84 | M22 X 1.5 | 51 | 13 | 97 | 443 |
| SA25TK | SAL25TK | 25 | 60 | 31 | 22 | 94 | M24 X 2.0 | 58 | 13 | 122 | 600 |
| SA30TK | SAL30TK | 30 | 70 | 37 | 25 | 110 | M30 X 2.0 | 71 | 13 | 168 | 1,030 |
| SA35TK | SAL35TK | 35 | 80 | 43 | 28 | 125 | M36 X 2.0 | 77 | 13 | 206 | 1,600 |
FEMALE ROD END | B | D | W | T | AF | N | CF | a° | STATIC | GRAMS | |
SI5TK | SIL5TK | 5 | 18.00 | 8 | 6.00 | 27 | M5 X0.8 | 10 | 4 | 7.5 | 18 |
SI6TK | SIL6TK | 6 | 20.00 | 9 | 6.75 | 30 | M6 X 1.0 | 12 | 9 | 9.3 | 27 |
SI8TK | SIL8TK | 8 | 24.00 | 12 | 9.00 | 36 | M8 X 1.25 | 16 | 13 | 16.7 | 46 |
SI10TK | SIL10TK | 10 | 28.00 | 14 | 10.50 | 43 | M10 X 1.5 | 20 | 13 | 23.4 | 76 |
SI12TK | SIL12TK | 12 | 32.00 | 16 | 12.00 | 50 | M12 X 1.75 | 22 | 13 | 32.0 | 115 |
SI14TK | SIL14TK | 14 | 36.00 | 19 | 13.50 | 57 | M14 X 2.0 | 25 | 13 | 41.9 | 170 |
SI16TK | SIL16TK | 16 | 42.00 | 21 | 15.00 | 64 | M16 X 2.0 | 28 | 13 | 52.7 | 230 |
SI18TK | SIL18TK | 18 | 46.00 | 23 | 16.50 | 71 | M18 X 1.5 | 32 | 13 | 63.8 | 320 |
SI20TK | SIL20TK | 20 | 50.00 | 25 | 18.00 | 77 | M20 X 1.5 | 33 | 13 | 78.1 | 415 |
SI22TK | SIL22TK | 22 | 54.00 | 28 | 20.00 | 84 | M22 X 1.5 | 37 | 13 | 97.2 | 540 |
SI25TK | SIL25TK | 25 | 60.00 | 31 | 22.00 | 94 | M24 X 2.0 | 42 | 13 | 122.1 | 750 |
SI30TK | SIL30TK | 30 | 70.00 | 37 | 25.00 | 110 | M30 X 2.0 | 51 | 13 | 168.4 | 1130 |
SI35TK | SIL35TK | 35 | 80.00 | 43 | 28.00 | 125 | M36 X 2.0 | 56 | 13 | 205.7 | 1600 |
